The Technology

How it works

For the optical data transmission via POF media converters are used. Electrical data signals are converted into optical signals with an advanced modulation technique. The light spectrum is within the visible light range, currently red light with typ. 650nm. At the receiver side the optical signal is, converted back into an electric data signal. The used transmission protocol, IEEE 802.3.u, is internationally standardized. The modulation and communication technology for Gigabit Ethernet over POF is currently in the standardization process in IEEE WG. Homefibre offers a wide range of media converters and optical POF switches for the installation of Fast Ethernet and
Gigabit Ethernet Network.

An optical network has many key advantages:

Security

Optical data transmission is immune to electromagnetic interference. The optical cable does not cause any electromagnetic radiation (electro-smog).

Low Power Drain

Implementation of electrical signals into light occurs without losses and with high energy-efficiency.

Standardized Transmission Protocol

The data transmission of IP packets and data streams via Fast Ethernet IEEE 802.3.u. and IEEE 802.az (Gigabit Ethernet) as well as required Quality of Service mechanisms are integrated in the active components and the access gateway (router or CPE [Customer Premise Equipment]).

A POF network can be installed following the architecture of structured cabling. However, the optical core network provides more and mainly new ways to install an innovative network infrastructure In combination with the electrical installation, it offers a comprehensive data backbone for all IP applications. A star or tree structure can be installed anywhere in the house. New network applications and new services can be integrated easy.

Standardized Interfaces

The interfaces to the network applications are conventional RJ45 data ports or WiFi via wireless access points. By combining optical data cable and wireless technology an optimum coverage and supply for fixed and mobile applications is provided in the house.

The slim POF cable (2.2 / 4.4 mm) can be arranged with little space even in a small distribution cabinet and be installed either in existing conduits or under frame boards or carpets.

* IP = Internet Protocol over Ethernet

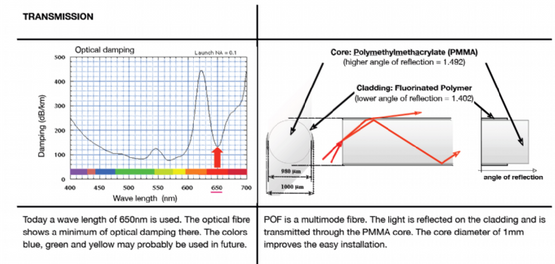

THE OPTICAL CABLE

Optische Kabel

The Polymer Optical Fibre, also called POF, is being used and approved for years in industry and the automotive industry for data transmission as well as for lightning purpose. The POF data cable is a high tech duplex cable with a core diameter of 1mm. One fibre is used for transmission and the other fibre is used for receiving. This increases the transmission length and raises the data transmission quality and bandwidth. The optical cable may be placed next to all electrical wires due to its galvanic non-conduciveness. For the core fibre we use the well approved Step Index fibre (SI-fibre). This high quality fibre is made of PMMA (Polmethyl-Metharcrylate).

The system - for end user - en

  • fast and reliable data transfer

  • no electric smog, radiation free

  • high efficiency – low power consumption

  • easy installation

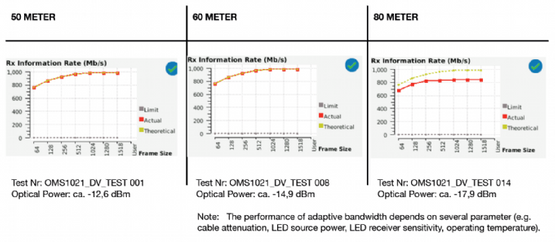

Gigabit Ethernet over POF

With the availability of Gigabit transmission over POF the installation of powerful networks becomes much easier.

KD-POF Gigabit Technology is currently to be standardized in the related IEEE working group. Through the adaptive bandwidth adjustment Gigabit Ethernet connections up to 90m can be realized.

Standardization

At Homefibre technology, products and applications are tested in comprehensive scenarios. These tests follow international standards and procedures like e.g. RFC 2544 etc...
IEC 60793-2-40: Optical fibers -Part 2-40
ETSI TS 105 175-1 V2.0.0 (2011-10): Access, Terminals, Transmission and Multiplexing (ATTM); Plastic Optical Fibre System Specifications for 100 Mbit/s and 1 Gbit/s
ISO 11801: Information Technology – Generic Cabling for Customers Premises
IEC 60825 series: Safety of laser products
DIN EN 50173: Dimensions u. Transmission Technical Requirements
IEEE 1000BASE-RHx (workgroup)
